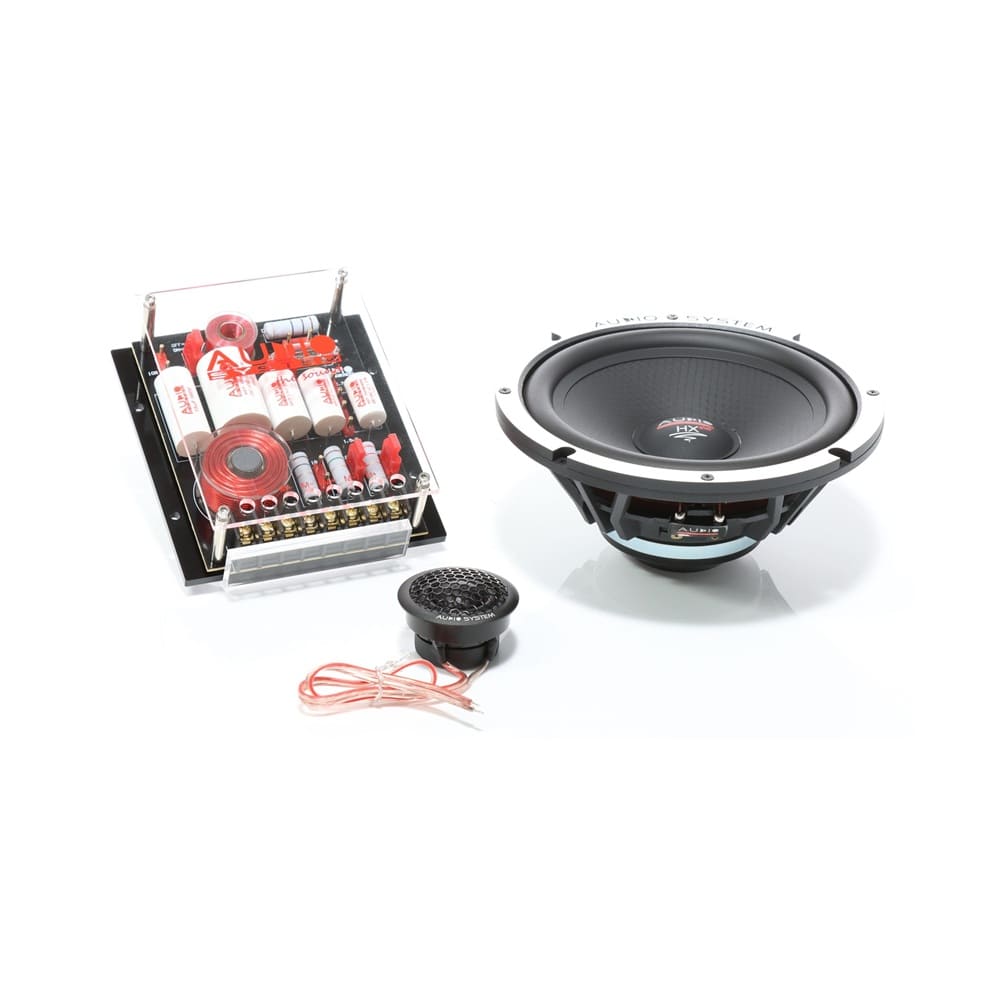

Audio System HX165 DUST EVO 3

With the HX165 DUST EVO 3, Audio System caters to discerning music lovers who expect the highest sound quality in their vehicles. This high-quality 2-way component system combines a powerful 165-mm mid-bass driver with a high-resolution fabric tweeter to deliver exceptionally natural, dynamic music reproduction. Thanks to the powerful neodymium driver, the lightweight NAWI paper cone reinforced with glass fiber, and the meticulously tuned crossover, the system delivers precise mids, punchy bass, and detailed highs—even at high volumes.

The high-quality construction—featuring a sturdy cast aluminum basket, a Nomex spider, and carefully selected components—ensures high power handling and consistently reliable performance over the long term. The HX165 DUST EVO 3 is suitable for both sound-oriented hi-fi systems and high-performance car audio systems with sophisticated requirements.

Technical Specifications

• 165 mm (6.5") 2-way high-end component system
• 2 × EX 165 DUST EVO 3 low-midrange drivers
• 2 × HS 25 DUST EVO fabric-dome neodymium tweeters
• 2 × FWHX EVO High-End Crossovers
• Power handling: 2 × 175 watts RMS
• Maximum power handling: 2 × 250 watts
• System Impedance: 3 ohms
• Neodymium-driven low-midrange driver
• Ventilated die-cast aluminum basket
• Ultra-lightweight NAWI paper diaphragm reinforced with glass fiber
• Nomex Spider for High Load Capacity
• 25-mm fabric tweeter with aluminum flange and resonance chamber
• High-quality 12 dB crossover with extensive sound customization options
• Mounting depth of the low-midrange driver: 67 mm
• Mounting diameter of the low-midrange driver: 146 mm
• Outer diameter of the deep-midrange driver: 166 mm
• Tweeter mounting diameter: 43 mm
• Tweeter mounting depth: 24 mm
• Frequency range of the low-midrange driver: 60 – 4,000 Hz
• Tweeter frequency range: 2,000 – 30,000 Hz
• Sound pressure level: 89.5 dB (2.83 V / 1 m
